F7 Locomotives

Introduction
Dynaglide diagramRevell F7 locomotives were produced with two different drive mechanisms.

The earliest, dubbed "Dyna Glide," used a chassis mounted motor that drove a shaft that contained a centrifugal clutch and a flywheel.  Power was transmitted to the truck via a belt drive located between the two axles of the truck which drove worm gears inside the truck.  Only 1 truck was powered so only 4 wheel drive was provided.

Later models used a more conventional 8 wheel drive with a truck mounted motor which drove the worm gears within it via a spur gear.  Power was transmitted to the other truck by means of a universal shaft.  This drive closely resembled the Varney drive of the time which is not surprising as Revell and Varney were under common ownership at this time

Deluxe locomotives generally came with human figures and added detail.

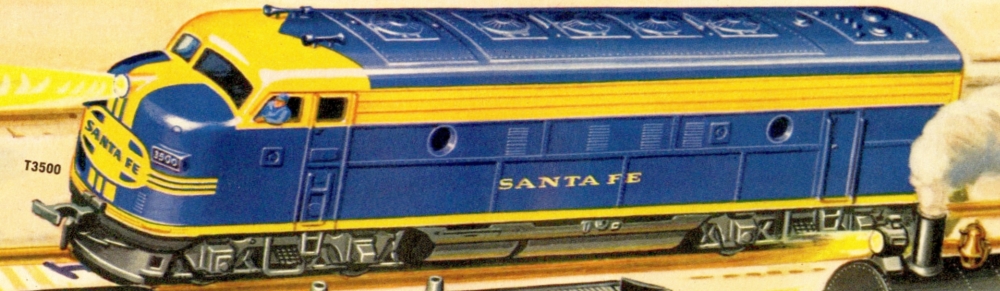

T3500 Santa Fe F7 Deluxe - 1956 (Dyna-Glide)



T3502 Baltimore & Ohio F7 Deluxe - 1958 (Dyna-Glide)

Cataloged as a single sale locomotive in the 1958-59 catalog, it appears to be only a single A Unit.   Sets cataloged in 1959-60 featuring this locomotive also include a dummy A unit.

T3504 Santa Fe Passenger F7 Deluxe - 1958  (Dyna-Glide)

Cataloged as a single sale locomotive in the 1958-59 catalog, it appears to be only a single A Unit.   Sets cataloged in 1959-60 featuring this locomotive also include a dummy A unit.

T3510 Santa Fe F7 - 1958 (8 wheel drive)

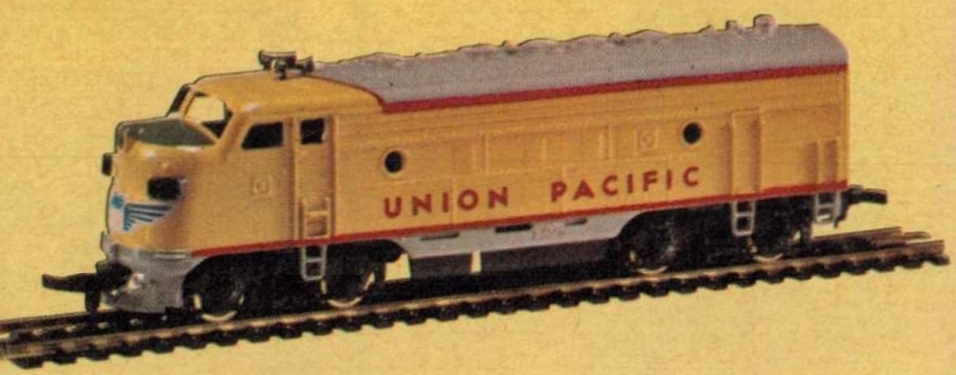

T3511 Union Pacific F7 - 1958 (8 wheel drive)

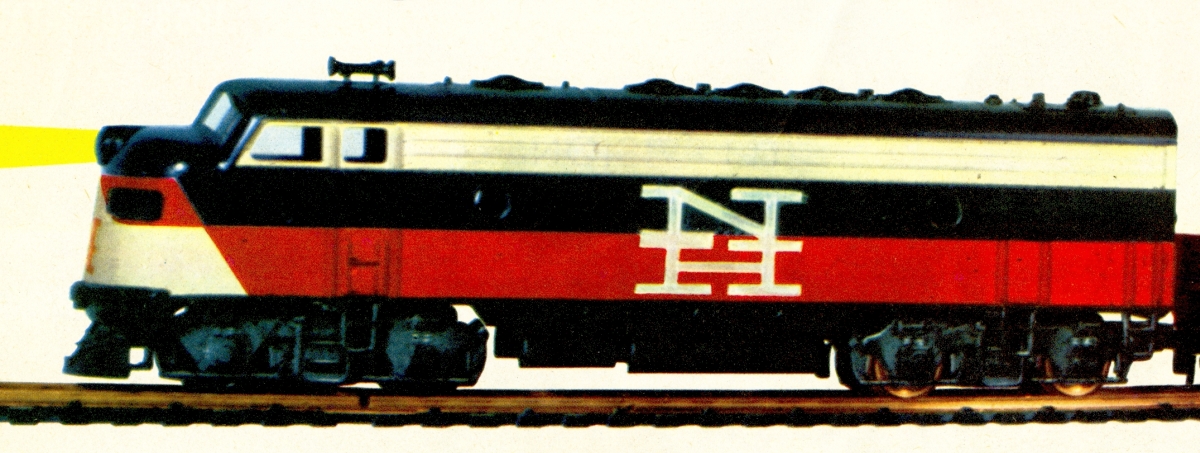

T3513 New Haven F7 - 1958 (8 wheel drive)

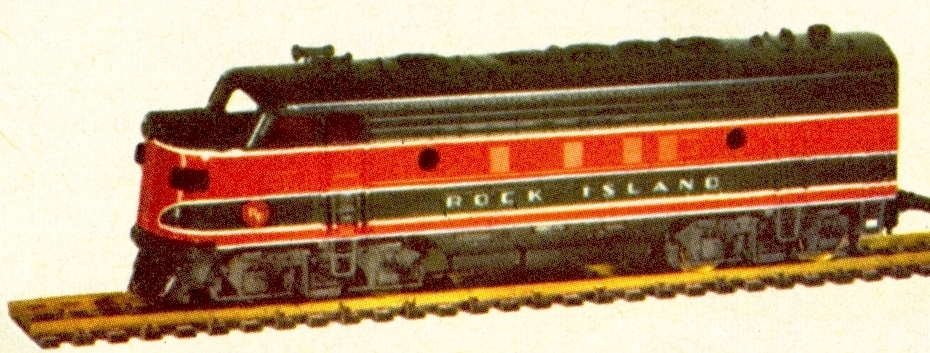

T3515 Rock Island F7 - 1958 (8 wheel drive)

T3516 Canadian Pacific F7 - 1959 (8 wheel drive)
